# Future: Friendly Parallel and Distributed Processing in R for Everyone

<span id="author">
  <strong>Henrik Bengtsson</strong><br>
  <div style="line-height: 1.0; margin-top: -1.5ex; font-size: 105%">
    Univ of California, San Francisco<br>
    <div style="line-height: 1.4; margin-top: 2ex; margin-bottom: 2ex;">

      <img src="imgs/twitter.svg" style="width: 2.2ex;margin-bottom: -0.2ex;">
      <a href="https://twitter.com/henrikbengtsson">@HenrikBengtsson</a><br>
      <img src="imgs/github.svg" style="width: 2.2ex; margin-bottom: -0.2ex;">
      <a href="https://github.com/HenrikBengtsson/future">HenrikBengtsson/future</a><br>
      <img src="imgs/rss.svg" style="width: 2.0ex;margin-bottom: -0.2ex;">
      <a href="https://jottr.org">jottr.org</a><br>
    </div>
  <small>
  </div>
  </small>
</span>

<div style="line-height: 1.5; margin-top: 2ex; font-size: 115%">
<strong>Acknowledgments</strong><br>
- <a href="https://losangeles2019.satrdays.org/">SatRday LA 2019</a> - Organizers, Volunteers, and Sponsors<br>
- R Core, CRAN, devels, and users!<br>
- <a href="https://www.r-consortium.org/projects">R Consortium</a><br>
</div>

<div class="print-only" style="margin-top: 3ex;">
A 40-minute presentation, SatRday LA 2019, Los Angeles, 2019-04-06
</div>

---
layout: false
class: HUGE

# Why do we parallelize software?

Parallel & distributed processing can be used to:

1. **speed up processing** (wall time)

2. **lower memory footprint** (per machine)

3. **avoid data transfers** (compute where data lives)

4. Other reasons, e.g. asynchronous UI/UX

---
class: huge code_normal

# Concurrency in R

```r
X <- list(a = 1:50, b = 51:100, c = 101:150, d = 151:200)
```

```r
y <- list()
y$a <- sum(X$a)
y$b <- sum(X$b)
y$c <- sum(X$c)
y$d <- sum(X$d)
```

```r
y <- list()
for (name in names(X)) y[[name]] <- sum(X[[name]])
```

```r
y <- lapply(X, FUN = sum)
```

---
class: huge code_normal

# How do we parallelize in base R? <span style="float: right; font-size: 60%;">since R 2.14.0 (Nov 2011)</span>

```r
X <- list(a = 1:50, b = 51:100, c = 101:150, d = 151:200)
y <- lapply(X, FUN = slow_sum)   # 4 minutes
```

This can be parallelized on Unix & macOS (becomes _non-parallel_ on Windows) as:
```r
y <- parallel::mclapply(X, FUN = slow_sum, mc.cores = 4)   # 1 minute
```

To parallelize also on Windows, we can do:
```r
library(parallel)
workers <- makeCluster(4)

clusterExport(workers, "slow_sum")
y <- parLapply(workers, X, fun = slow_sum)   # 1 minute
```

---
layout: false
class: Huge code_normal

# PROBLEM: Different APIs for different parallelization strategies

## Developer

* "Which parallel API should I use?"

* "What operating systems are users running?"

* "It should work ... Oh, I forgot to test on macOS."

## User

* "Weird, others say it work for them but for me it doesn't!?"

* "I wish this awesome package could parallelize on Windows :("

* "I wish we could use a compute cluster in the cloud to speed this up"

---
class: Huge code_normal

# PROBLEM: Code clutter + error prone

```r
#' @import parallel
my_fun <- function(X, ncores = 1) {
  if (ncores == 1) {
    y <- lapply(X, FUN = my_sum)
  } else {
    if (.Platform$OS.type == "windows") {
      workers <- makeCluster(ncores)
      on.exit(stopWorkers(workers))
      clusterExport(workers, "slow_sum")
      y <- parLapply(workers, X, fun = slow_sum)
    } else {
      y <- mclapply(X, FUN = my_sum, mc.cores = ncores)
    }
  }
  y
}
```

---
class: huge code_normal

# SOLUTION: Encapsulate these problems

```r
library(foreach)
doMC::registerDoMC(4)  # User chooses how to parallelize

my_fun <- function(X) {
  foreach(x = X) %dopar% { slow_sum(x) }
}
```

```r
workers <- parallel::makeCluster(4)  # Alternative parallel backend
doParallel::registerDoParallel(workers)
```
<code style="color: #cc0000;">Error in { : task 1 failed - 'could not find function "slow_sum"'</code>

Whoops, we forgot to export `slow_sum()` to background sessions;
```r
  foreach(x = X, .export = "slow_sum") %dopar% { slow_sum(x) }
```

---
count: false
layout: false
count: false
layout: false
class: Huge

# The Future ...

---
count: false
layout: false
layout: false
class: Huge
count: false

# A Future is ...

* A **future** is an abstraction for a **value** that will be **available later**
* The value is the **result of an evaluated expression**
* The **state of a future** is **unevaluated** or **evaluated**

<div style="margin-top: 3ex; font-size: 130%; margin-left: 3ex;">
<div style="float: left;">
Standard R:
<pre style="font-size: 130%;">
v <- expr
</pre>
</div>

<div style="float: right; margin-right: 4ex;">
Future API:
<pre style="font-size: 130%;">
f <- future(expr)
v <- value(f)
</pre>
</div>
</div>

---
count: true
class: huge
count: false

# Example: Sum of 1:100

```r
> slow_sum(1:100)        # 2 minutes
[1] 5050
```

```r
> a <- slow_sum(1:50)    # 1 minute
> b <- slow_sum(51:100)  # 1 minute
> a + b
[1] 5050
```

---
class: huge
count: false

# Example: Sum of 1:50 and 51:100 in parallel

```r
> library(future)
> plan(multiprocess)

> fa <- future( slow_sum( 1:50 ) )   # ~0 seconds
> fb <- future( slow_sum(51:100) )   # ~0 seconds
> 1:3
[1] 1 2 3

> value(fa)
[1] 1275
> value(fb)
[1] 3775

> value(fa) + value(fb)
[1] 5050
```

---
layout: false
class: Huge

# Two alternative syntaxes

<div style="margin-top: 2ex; font-size: 130%; margin-left: 3ex;">
<div style="float: left;">
Standard R:
<pre style="font-size: 130%;">
v <- expr
</pre>
</div>

<div style="float: right; margin-right: 4ex;">
Future API (explicit):
<pre style="font-size: 130%;">
f <- future(expr)
v <- value(f)
</pre>
</div>
</div>

<div style="float: right; margin-right: 6.2ex;">
Future API (implicit):
<pre style="font-size: 130%;">
v %<-% expr
</pre>
</div>
</div>

---
class: Huge

# Example: Sum of 1:50 and 51:100 in parallel <span style="float: right;">(implicit API)</span>

```r
> library(future)
> plan(multiprocess)

> a %<-% slow_sum( 1:50 )   # ~0 seconds
> b %<-% slow_sum(51:100)   # ~0 seconds
> 1:3
[1] 1 2 3

```

---
count: false
class: Huge

# Example: Sum of 1:50 and 51:100 in parallel <span style="float: right;">(implicit API)</span>

```r
> library(future)
> plan(multiprocess)

> a %<-% slow_sum( 1:50 )   # ~0 seconds
> b %<-% slow_sum(51:100)   # ~0 seconds
> 1:3
[1] 1 2 3

> a + b
[1] 5050
```

---
count: false
count: false
count: false
count: false
count: false
class: Huge

# Many ways to resolve futures

```r
plan(sequential)
plan(multiprocess)
plan(cluster, workers = c("n1", "n2", "n3"))
plan(cluster, workers = c("remote1.org", "remote2.org"))
...
```

```r
> a %<-% slow_sum( 1:50 )
> b %<-% slow_sum(51:100)
> a + b
[1] 5050
```

---
class: Huge

# R package: future <span class="badges-small right"><a href="https://cran.r-project.org/package=future"><img src="imgs/future_cran.svg" alt="CRAN version: 1.12.0"></a>

* "Write once, run anywhere"
* A simple **unified API** ("interface of interfaces")
* **100% cross platform**
* **Easy to install** (< 0.5 MiB total)
* **Very well tested, lots of CPU mileage, production ready**

<pre>
╔════════════════════════════════════════════════════════╗
║                     < Future API >                     ║
║                                                        ║
║               future(), value(), %<-%, ...             ║
╠════════════════════════════════════════════════════════╣
║                         future                         ║
╠════════════════════════════════╦═══════════╦═══════════╣
║            parallel            ║  globals  ║ (listenv) ║
╠══════════╦══════════╦══════════╬═══════════╬═══════════╝
║   snow   ║   Rmpi   ║   nws    ║ codetools ║
╚══════════╩══════════╩══════════╩═══════════╝
</pre>

---
class: Huge

# Why a Future API? <span style="float: right;">Solution: "interface of interfaces"</span>

* The Future API encapsulates heterogeneity
<div style="margin-top: -1.5ex;"/>
  - fever decisions for developer to make
  - more power to the end user

* Motto:  **Developer decides what to parallelize** - **user decides how to**

* Provides **atomic building blocks**:

- `f <- future(expr)`, `v <- value(f)`, ...

  for richer parallel constructs, e.g. '<a href="https://cran.r-project.org/package=foreach">foreach</a>', '<a href="https://cran.r-project.org/package=future.apply">future.apply</a>', ...

* **Automatic support for new backends**,<br>
  e.g. '<a href="https://cran.r-project.org/package=future.callr">future.callr</a>', '<a href="https://cran.r-project.org/package=future.batchtools">future.batchtools</a>', 'future.clustermq', ...

---
class: Huge

# Why a Future API? <span style="float: right;">99% Worry Free</span>

* **Globals & Packages**: automatically **identified & exported**
* **Static-code inspection** by walking the abstract syntax tree (AST)

```r
x <- rnorm(n = 100)                pryr::ast( { slow_sum(x) } )
f <- future({ slow_sum(x) })     |  \- `{
            \_____________/      |  \- ()
                   |_____________|    \- `slow_sum
                                 |    \- `x
```

Globals identified and exported to background R worker:
1. `slow_sum()` - a function (also searched recursively)

2. `x` - a numeric vector of length 100

<div style="font-size: 110%; font-weight: bold;">Globals & packages can also be manually specified</div>

---
count: false
layout: false
layout: false
class: Huge
count: false

# Building things using core future building blocks

</center>

---
class: Large

# Building things using core future building blocks

```r
#' @import future
parallel_lapply <- function(X, fun, ...) {
  ## Create futures
  fs <- lapply(X, function(x) {
    future(fun(x, ...))
  })

## Collect their values
  lapply(fs, value)
}
```
```r
> plan(multiprocess)
> X <- list(a = 1:50, b = 51:100, c = 101:150, d = 151:200)
> y <- parallel_lapply(X, slow_sum)
> str(y)
List of 4
 $ a: int 1275
 $ b: int 3775
 $ c: int 6275
 $ d: int 8775
```

---
class: huge
layout: true

# Frontend: future.apply <span class="badges-small right"><a href="https://cran.r-project.org/package=future.apply"><img src="imgs/future.apply_cran.svg" alt="CRAN version: 1.2.0"></a>

* Futurized version of base R's `lapply()`, `vapply()`, `replicate()`, ...
* ... on **all future-compatible backends**
* Load balancing ("chunking")
* Proper parallel random number generation

<pre style="font-size: 80%; margin-top: -1ex; margin-bottom: -1ex;">
╔═══════════════════════════════════════════════════════════╗
║ future_lapply(), future_vapply(), future_replicate(), ... ║
╠═══════════════════════════════════════════════════════════╣
║                       < Future API >                      ║
╠═══════════════════════════════════════════════════════════╣
║                         "wherever"                        ║
╚═══════════════════════════════════════════════════════════╝
</pre>

---

```r
y <- lapply(X, slow_sum)
```
---

```r
y <- future_lapply(X, slow_sum)
```

* `plan(multiprocess)`
* `plan(cluster, workers = c("n1", "n2", "n3"))`
* `plan(batchtools_sge)`

---
class: huge
layout: true

# Frontend: furrr (Davis Vaughan)

* Futurized version of purrrs R's `map()`, `map2()`, `modify()`, ...
* ... on **all future-compatible backends**

<pre style="font-size: 80%; margin-top: -1ex; margin-bottom: -1ex;">
╔═══════════════════════════════════════════════════════════╗
║ future_map(), future_map2(), future_modify(), ...         ║
╠═══════════════════════════════════════════════════════════╣
║                       < Future API >                      ║
╠═══════════════════════════════════════════════════════════╣
║                         "wherever"                        ║
╚═══════════════════════════════════════════════════════════╝
</pre>

---

```r
y <- purrr::map(X, slow_sum)
```
---

```r
y <- future_map(X, slow_sum)
```

---
class: huge
layout: false

# Frontend: doFuture <span class="badges-small right"><a href="https://cran.r-project.org/package=doFuture"><img src="imgs/doFuture_cran.svg" alt="CRAN version: 0.8.0"></a>

* A **<a href="https://cran.r-project.org/package=foreach">foreach</a>** adapter on top of the Future API
* Foreach on **all future-compatible backends**

<pre style="font-size: 80%; margin-left: 1ex; margin-top: -1ex; margin-bottom: -1ex;">
╔═══════════════════════════════════════════════════════╗
║                      foreach API                      ║
╠════════════╦══════╦════════╦═══════╦══════════════════╣
║ doParallel ║ doMC ║ doSNOW ║ doMPI ║     doFuture     ║
╠════════════╩══╦═══╩════════╬═══════╬══════════════════╣
║   parallel    ║    snow    ║ Rmpi  ║  < Future API >  ║
╚═══════════════╩════════════╩═══════╬══════════════════╣
                                     ║    "wherever"    ║
                                     ╚══════════════════╝
</pre>

```r
doFuture::registerDoFuture()
plan(multiprocess)

y <- foreach(x = X) %dopar% { slow_sum(x) }
```

---
class: huge

# ~1,400 packages can now parallelize on HPC

<pre style="font-size: 75%; margin-left: 1ex;">
┌───────────────────────────────────────────────────────┐
│                                                       │
│      caret, gam, glmnet, plyr, ... (1,400 pkgs)       │
│                                                       │
╠═══════════════════════════════════════════════════════╣
║                      foreach API                      ║
╠══════╦════════════╦════════╦═══════╦══════════════════╣
║ doMC ║ doParallel ║ doSNOW ║ doMPI ║     doFuture     ║
╠══════╩════════╦═══╩════════╬═══════╬══════════════════╣
║   parallel    ║    snow    ║ Rmpi  ║  < Future API >  ║
╚═══════════════╩════════════╩═══════╬══════════════════╣
                                     ║    "wherever"    ║
                                     ╚══════════════════╝
</pre>
```r
doFuture::registerDoFuture()
plan(future.batchtools::batchtools_sge)

library(caret)
model <- train(y ~ ., data = training)
```

???
```r
## 2018-05-12
> db <- utils::available.packages()
> direct <- tools::dependsOnPkgs("foreach", recursive=FALSE, installed=db)
> str(direct)
 chr [1:533] "adabag" "adamethods" "admixturegraph" "ADMM" ...
> all <- tools::dependsOnPkgs("foreach", recursive=TRUE, installed=db)
> str(all)
 chr [1:1363] "adabag" "adamethods" "admixturegraph" "ADMM" ...
```

---
count: false

# High Performance Compute (HPC) clusters

<!--

class: huge

# HPC examples

* At many academic departments:
  - Hardware: 2-10 compute nodes
  - Scheduler: N/A
  - File system: shared

* Also common (e.g. [UCSF Cancer Center](http://cbc.ucsf.edu/hpc/)):
  - Hardware: ~1,300 cores across 30 compute nodes
  - Scheduler: Torque / PBS
  - File system: shared

-->

---
class: huge

# Example: Genome sequencing project

* Sequencing of a human DNA (3 * 10<sup>9</sup> nucleotides)
* 80 individuals
* Millions of short raw sequences need to be mapped to the human reference
* Alignment takes ~3 hours per individual
* Raw sequence data is ~200 GB per individual

```r
## Find our 80 FASTQ files
fastq <- dir(pattern = "[.]fq$")         ## 200 GB each => 16 TB total

## Align the to human genome
bam <- lapply(fastq, DNAseq::align)      ## 3 hours each
```

**Total processing time: 80 * 3 = 240 hours = 10 days**

---
class: huge

# Example: Genome sequencing project

```r
library(future.apply)
plan(multiprocess)     ## 12-core machine

## Find our 80 FASTQ files
fastq <- dir(pattern = "[.]fq$")              ## 200 GB each => 16 TB total

## Align the to human genome
bam <- future_lapply(fastq, DNAseq::align)    ## 3 hours each
```

**Total processing time: 80 * 3 / 12 = 20 hours**

---
class: huge

# Ad-Hoc Compute Clusters

A common setup in many departments:

* Two or more machines
* Manually SSH into each machine to launch scripts

Attributes:

* Works ok with a few people and fair usage
* Can easily be overloaded if too many users
* Hard to plan your jobs

---
class: huge

# Clusters with Job Queues

With too many nodes or users, ad-hoc clusters
becomes cumbersome and hard to manage and control.
**Better to use a HPC scheduler with a job queue**:

* Two or more machines

* Users submit jobs to a common job queue

* The system takes jobs on the queue and
  executes them on available machines / cores

Attributes:

* Works well with any number of users and machines
* Users do not have to worry about overloading the cluster;
  the cluster will wait to process the next job if all
  compute resources are busy running jobs

---
class: Large

# Example: Submit a job & watch the queue

```sh
#! /bin/env bash
#PBS -N my_htseq_align
#PBS -l mem=12gb

htseq_align $1 human.fa
```
```sh
$ qsub htseq_align.pbs patient101.fq
$ qsub htseq_align.pbs patient102.fq
```
```sh
$ qstat
Job ID   Name             User         Time Use S
-------- ---------------- ------------ -------- -
606411   bedGraph         alice        46:22:22 R
606494   misosummary      alice        55:07:08 R
606641   Rscript          bob          37:18:30 R
607758   Exome_QS1_Som    charlie      06:20:23 R
607832   my_htseq_align   henrik       00:01:57 R
607833   my_htseq_align   henrik              - Q
```

---
class: huge

# Backend: future.batchtools <span class="badges-small right"><a href="https://cran.r-project.org/package=future.batchtools"><img src="imgs/future.batchtools_cran.svg" alt="CRAN version: 0.7.2"></a>

* **<a href="https://cran.r-project.org/package=batchtools">batchtools</a>**: Map-Reduce API for **HPC schedulers**,<br>
  e.g. LSF, OpenLava, SGE, Slurm, and TORQUE / PBS
* **<a href="https://cran.r-project.org/package=future.batchtools">future.batchtools</a>**: **Future API** on top of **<a href="https://cran.r-project.org/package=batchtools">batchtools</a>**

<pre style="font-size: 115%; margin-left: 1.5ex;">
╔═══════════════════════════════════════════════════╗
║                   < Future API >                  ║
║                                                   ║
║     future(), resolved(), value(), %<-%, ...      ║
╠═══════════════════════════════════════════════════╣
║          future        <->   future.batchtools    ║
╠═════════════════════════╦═════════════════════════╣
║         parallel        ║        batchtools       ║
╚═════════════════════════╬═════════════════════════╣
                          ║ SGE, Slurm, TORQUE, ... ║
                          ╚═════════════════════════╝
</pre>

---
class: huge

```r
library(future.batchtools)
plan(batchtools_sge)

fastq <- dir(pattern = "[.]fq$")              ## 200 GB each; 80 files
bam <- future_lapply(fastq, DNAseq::align)    ## 3 hours each
```
```sh
$ qstat
Job ID   Name             User         Time Use S
-------- ---------------- ------------ -------- -
606411   bedGraph         alice        46:22:22 R
606638   future05         henrik       01:32:05 R
606641   Rscript          bob          37:18:30 R
606643   future06         henrik       01:31:55 R
...
```

---
class: huge
count: false

# <span style="float: left;">Backend: Google Cloud Engine Cluster (Mark Edmondson; cloudyR)</span>
<a href="https://cran.r-project.org/package=googleComputeEngineR"><img src="imgs/googleComputeEngineR-logo.png" alt="googleComputeEngineR logo" class="package-logo"></a><a href="https://cloudyr.github.io/"><img src="imgs/cloudyr.org_project_logo_400x400.jpg" alt="googleComputeEngineR logo" class="package-logo-bottom"></a>

```r
library(future)
library(googleComputeEngineR)
vms <- gce_vm_cluster(cluster_size = 36)
plan(cluster, workers = as.cluster(vms))
```

```r
data <- future_lapply(1:100, montecarlo_pi, B = 10e3)
pi_hat <- Reduce(calculate_pi, data)

print(pi_hat)
## 3.14159
```

---
count: false
layout: false
class: Huge

# Futures in the Wild ...

---
class: huge

# _drake_ - A Workflow Manager (Will Landau; rOpenSci) <a href="https://cran.r-project.org/package=drake"><img src="imgs/drake.svg" alt="drake logo" class="package-logo"></a><br>

```r
tasks <- drake_plan(
  raw_data = readxl::read_xlsx(file_in("raw-data.xlsx")),

data = raw_data %>% mutate(Species = forcats::fct_inorder(Species)),

  hist = create_plot(data),

  fit = lm(Sepal.Width ~ Petal.Width + Species, data),

  report = rmarkdown::render(knitr_in("report.Rmd"),
                             output_file = file_out("report.pdf"))
)

make(tasks, parallelism = "future", jobs = 2)
```

---

---
class: huge

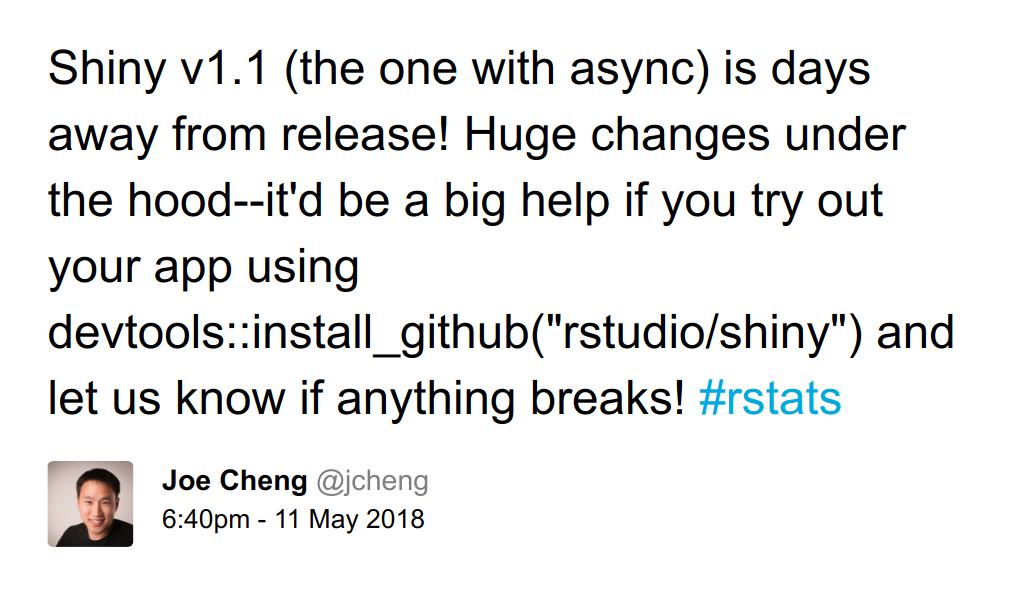

# _shiny_ - Asynchronous UI (RStudio) <a href="https://cran.r-project.org/package=shiny"><img src="imgs/shiny-600x695.png" alt="shiny logo" class="package-logo"></a>

```r
library(shiny)
future::plan("multiprocess")
...
```

---
count: false
layout: false
class: Huge

# The Near Future ...

---
class: huge

# Improvements

* ☑ Capture and relay standard output
* ☑ Capture and relay messages and warnings
* ☑ Improved error reporting and tracebacks (more can be done)
* ☐ [50%] Benchmarking (time and memory)
* ☐ [20%] Hook functions, e.g. update progress bar when one future is resolved
* ☐ [20%] Killing futures
* ☐ [10%] Restarting failed futures
* ☐ [80%] **future.tests** - Unified test framework for all future backends
  - All parallel backends must support the Core Future API
  - Sponsored via an R Consortium grant

## foreach

* ☐ [80%] HARMONIZATION: Identify globals using **future**

---
class: Huge

# Roadmap

* Make future **truly pure "containers"** to be evaluated
  - One of the original design goals
  - Support for passing futures "asis" to wherever and whenever

* Specify **resource needs**, e.g. only pass future to a worker:
  - ... on the same file system
  - ... that has a GPU

* **Sandboxed** future backend, e.g. evaluate non-trusted code

---
class: huge

# Summary of features

* **Unified API**

* **Portable code**

* **Worry-free**

* **Developer decides what to parallelize - user decides how to**

* For beginners as well as advanced users

* Nested parallelism on nested heterogeneous backends

* Protects against recursive parallelism

* Easy to build new frontends

* Easy to add new backends

---
class: huge

# Building a better future

<br>
<center style="font-size: 180%; margin-top: -3ex;">
I <span style="color:red;">💜</span> feedback,<br> bug reports,<br>and suggestions
<br>
<br>
<span style="font-size: 70%">

      <img src="imgs/twitter.svg" style="width: 2.2ex;margin-bottom: -0.2ex;">
      <a href="https://twitter.com/henrikbengtsson">@HenrikBengtsson</a><br>
      <img src="imgs/github.svg" style="width: 2.2ex; margin-bottom: -0.2ex;">
      <a href="https://github.com/HenrikBengtsson/future">HenrikBengtsson/future</a><br>
      <img src="imgs/rss.svg" style="width: 2.0ex;margin-bottom: -0.2ex;">
      <a href="https://jottr.org">jottr.org</a><br>
</span>
<br>
Thank you!
</center>

---
count: false

# Appendix (Random Slides)

---
count: false

# A1. Features - more details

---
class: large
count: false

# A1.1 Well Tested

* Large number of unit tests
* System tests
* High code coverage (union of all platform near 100%)
* Cross platform testing
* CI testing
* Testing several R versions (many generations back)
* Reverse package dependency tests
* All backends highly tested
* Large of tests via doFuture across backends on `example()`:s
  from foreach, NMF, TSP, glmnet, plyr, caret, etc.
  ([example link](https://travis-ci.org/HenrikBengtsson/doFuture))

# R Consortium Infrastructure Steering Committee (ISC) Support Project

* **<a href="https://www.r-consortium.org/projects/awarded-projects">Backend Conformance Test Suite</a>** - an effort to formalizing and standardizing the above tests into a unified go-to test environment.

---
class: Large
count: false

# A1.2 Nested futures

```r
fastq <- dir(pattern = "[.]fq$")

aligned <- listenv()
for (i in seq_along(fastq)) {
  aligned[[i]] %<-% {
    chrs <- listenv()
    for (j in 1:24) {
      chrs[[j]] %<-% DNAseq::align(fastq[i], chr = j)
    }
    merge_chromosomes(chrs)
  }
}
```

* `plan(batchtools_sge)`

* `plan(list(batchtools_sge, sequential))`

* `plan(list(batchtools_sge, multiprocess))`

---
class: Huge
count: false

# A1.3 Lazy evaluation

By default all futures are resolved using eager evaluation, but the _developer_ has the option to use lazy evaluation.

Explicit API:
```r
f <- future(..., lazy = TRUE)
v <- value(f)
```

Implicit API:
```r
v %<-% { ... } %lazy% TRUE
```

---
class: Large
count: false

# A1.4 False-negative & false-positive globals

Identification of globals from static-code inspection has limitations
(but defaults cover a large number of use cases):

* False negatives, e.g. `my_fcn` is not found in `do.call("my_fcn", x)`. Avoid by using `do.call(my_fcn, x)`.

* False positives - non-existing variables,
  e.g. NSE and variables in formulas.  Ignore and leave it to run-time.

```r
x <- "this FP will be exported"

data <- data.frame(x = rnorm(1000), y = rnorm(1000))

fit %<-% lm(x ~ y, data = data)
```

<p class="footnote-small">
Comment: ... so, the above works.
</p>

---
class: large
count: false

# A1.5 Full control of globals (explicit API)

Automatic (default):
```r
x <- rnorm(n = 100)
y <- future({ slow_sum(x) }, globals = TRUE)
```

By names:
```r
y <- future({ slow_sum(x) }, globals = c("slow_sum", "x"))
```

As name-value pairs:
```r
y <- future({ slow_sum(x) }, globals =
                                 list(slow_sum = slow_sum, x = rnorm(n = 100)))
```

Disable:
```r
y <- future({ slow_sum(x) }, globals = FALSE)
```

---
class: large
count: false

# A1.5 Full control of globals (implicit API)

Automatic (default):
```r
x <- rnorm(n = 100)
y %<-% { slow_sum(x) } %globals% TRUE
```

By names:
```r
y %<-% { slow_sum(x) } %globals% c("slow_sum", "x")
```

As name-value pairs:
```r
y %<-% { slow_sum(x) } %globals% list(slow_sum = slow_sum, x = rnorm(n = 100))
```

Disable:
```r
y %<-% { slow_sum(x) } %globals% FALSE
```

---
class: large
count: false

# A1.6 Protection: Exporting too large objects

```r
x <- lapply(1:100, FUN = function(i) rnorm(1024 ^ 2))
y <- list()
for (i in seq_along(x)) {
  y[[i]] <- future( mean(x[[i]]) )
}
```
<span style="font-size: 100%">
gives error: "The total size of the 2 globals that need to be exported for the future expression ('mean(x[[i]])') is **800.00 MiB. This exceeds the maximum allowed size of 500.00 MiB (option 'future.globals.maxSize')**. There are two globals: 'x' (800.00 MiB of class 'list') and 'i' (48 bytes of class 'numeric')."
</span>

```r
for (i in seq_along(x)) {
  x_i <- x[[i]]  ## Fix: subset before creating future
  y[[i]] <- future( mean(x_i) )
}
```

<p class="footnote-small">
Comment: Interesting research project to automate via code inspection.
</p>

---
class: large
count: false

# A1.7 Free futures are resolved

Implicit futures are always resolved:
```r
a %<-% sum(1:10)
b %<-% { 2 * a }
print(b)
## [1] 110
```
Explicit futures require care by developer:
```r
fa <- future( sum(1:10) )
a <- value(fa)
fb <- future( 2 * a )
```
For the lazy developer - not recommended (may be expensive):
```r
options(future.globals.resolve = TRUE)
fa <- future( sum(1:10) )
fb <- future( 2 * value(fa) )
```

---
class: Large
count: false

# A1.8 What's under the hood?

* **Future class** and corresponding methods:

- abstract S3 class with common parts implemented, <br>e.g.
    globals and protection

  - new backends extend this class and implement core methods,<br>
    e.g. `value()` and `resolved()`

  - built-in classes implement backends on top the parallel package

---
class: large
count: false

# A1.9 Universal union of parallel frameworks

_ _                  | <a href="https://cran.r-project.org/package=future">future</a> | parallel | <a href="https://cran.r-project.org/package=foreach">foreach</a> | <a href="https://cran.r-project.org/package=batchtools">batchtools</a> | <a href="https://cran.r-project.org/package=BiocParallel">BiocParallel</a>
:---------------------|:------------|:----------|:------------|:-----------|:-------------
Synchronous           |** ✓      **| ✓        |  ✓         | ✓         | ✓
Asynchronous          |** ✓      **| ✓        |  ✓         | ✓         | ✓
Uniform API           |** ✓      **|           |  ✓         | ✓         | ✓
Extendable API        |** ✓      **|           |  ✓         | ✓         | ✓
Globals               |** ✓      **|           | (✓)+**(soon by future)** |            |
Packages              |** ✓      **|           |             |            |
Map-reduce ("lapply") |** ✓      **| ✓        | `foreach()` | ✓         | ✓
Load balancing   |** ✓      **| ✓        | ✓          | ✓         | ✓
For loops             |** ✓      **|           |             |            |
While loops           |** ✓      **|           |             |            |
Nested config         |** ✓      **|           |             |            |
Recursive protection  |** ✓      **| mc        | mc          | mc         | mc
RNG stream            |** ✓+     **| ✓        | <a href="https://cran.r-project.org/package=doRNG">doRNG</a>       | (planned) | SNOW
Early stopping        |** ✓      **|           |             |            | ✓
Traceback             |** ✓      **|           |             |            | ✓

---
count: false

# A2 Bells & whistles

---
class: large
count: false

# A2.1 availableCores() & availableWorkers()

* `availableCores()` is a "nicer" version of `parallel::detectCores()` that returns the number of cores allotted to the process by acknowledging known settings, e.g.

- `getOption("mc.cores")`
  - HPC environment variables, e.g. `NSLOTS`, `PBS_NUM_PPN`, `SLURM_CPUS_PER_TASK`, ...
  - `_R_CHECK_LIMIT_CORES_`

* `availableWorkers()` returns a vector of hostnames based on:

- HPC environment information, e.g. `PE_HOSTFILE`, `PBS_NODEFILE`, ...
  - Fallback to `rep("localhost", availableCores())`

Provide safe defaults to for instance
```r
plan(multiprocess)
plan(cluster)
```

---
class: Large
count: false

# A2.2: makeClusterPSOCK()

`future::makeClusterPSOCK()`:

* Improves upon `parallel::makePSOCKcluster()`

* Simplifies cluster setup, especially remote ones

* Avoids common issues when workers connect back to master:
  - uses SSH reverse tunneling
  - no need for port-forwarding / firewall configuration
  - no need for DNS lookup

* Makes option `-l <user>` optional (such that `~/.ssh/config` is respected)

* Automatically stop clusters when no longer needed, e.g. by garbage collector

* Automatically stop workers if set up of cluster fails; `parallel::makePSOCKcluster()` may leave background R processes behind
---
class: huge
count: false

# A2.3 HPC resource parameters

With '<a href="https://cran.r-project.org/package=future.batchtools">future.batchtools</a>' one can also specify computational resources, e.g. cores per node and memory needs.

```r
plan(batchtools_sge, resources = list(mem = "128gb"))
y %<-% { large_memory_method(x) }
```

**Specific to scheduler**: `resources` is passed to the job-script template
where the parameters are interpreted and passed to the scheduler.

Each future needs one node with 24 cores and 128 GiB of RAM:
```r
resources = list(l = "nodes=1:ppn=24", mem = "128gb")
```

---
class: huge
count: false

# A2.4: Example: An academic cluster

## One worker per compute node (6 workers total)
```r
nodes <- c("cauchy", "leibniz", "bolzano",
           "shannon", "euler", "hamming")
plan(cluster, workers = nodes)

## Find our 80 FASTQ files
fastq <- dir(pattern = "[.]fq$")         ## 200 GB each

## Align the to human genome
bam <- listenv()
for (i in seq_along(fastq)) {
  bam[[i]] %<-% DNAseq::align(fastq[i])  ## 3 hours each
}
```
* **Total processing time: ~1.7 days = 40 hours**

---
class: huge
count: false

# A2.5 Example: An academic cluster

## Four workers per compute node (24 workers total)
```r
nodes <- c("cauchy", "leibniz", "bolzano",
           "shannon", "euler", "hamming")
plan(cluster, workers = rep(nodes, each = 4))

## Find our 80 FASTQ files
fastq <- dir(pattern = "[.]fq$")         ## 200 GB each

## Align the to human genome
bam <- listenv()
for (i in seq_along(fastq)) {
  bam[[i]] %<-% DNAseq::align(fastq[i])  ## 3 hours each
}
```

* **Total processing time: ~0.4 days = 10 hours** (cf. 40 hours and 10 days)

---
class: huge
count: false

# A2.6: Nested futures

E.g. one individual per machine **then** one chromosome per core:

* `plan(list(tweak(cluster, workers = nodes), multiprocess))`

```r
fastq <- dir(pattern = "[.]fq$")

bam <- listenv()
for (i in seq_along(fastq)) {
  ## One individual per worker
  bam[[i]] %<-% {
    chrs <- listenv()
    for (j in 1:24) {
      ## One chromosome per core
      chrs[[j]] %<-% DNAseq::align(fastq[i], chr = j)
    }
    merge_chromosomes(chrs)
  }
}
```

---
count: false

# A3. More Examples

---
class: huge
count: false

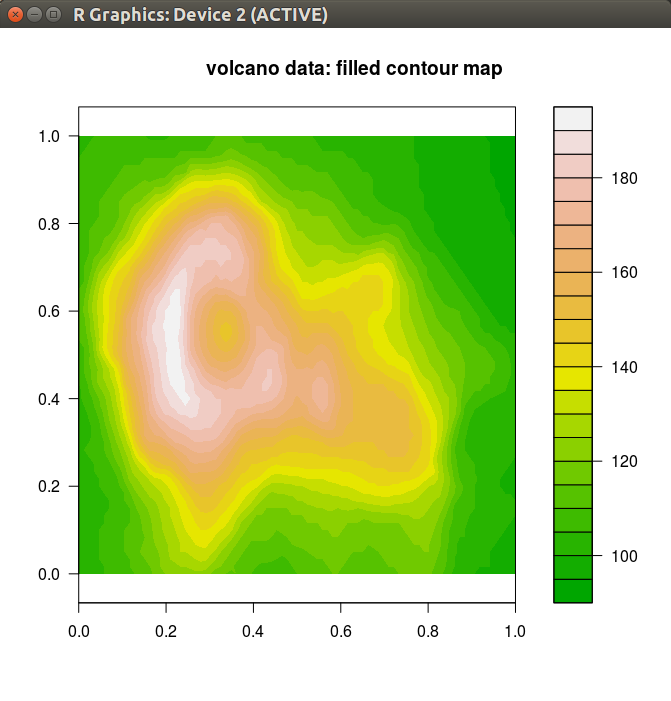

# A3.1 Plot remotely - display locally

```r
> library(future)
> plan(cluster, workers = "remote.org")
```

```r
## Plot remotely
> g %<-% R.devices::capturePlot({
    filled.contour(volcano, color.palette = terrain.colors)
    title("volcano data: filled contour map")
 })
```

```r
## Display locally
> g
```

???
* R (>= 3.3.0)
* `recordPlot()` + `replayPlot()`
* Replotted using local R plot routines
* X11 and similar is _not_ in play here!

---
class: Large
count: false

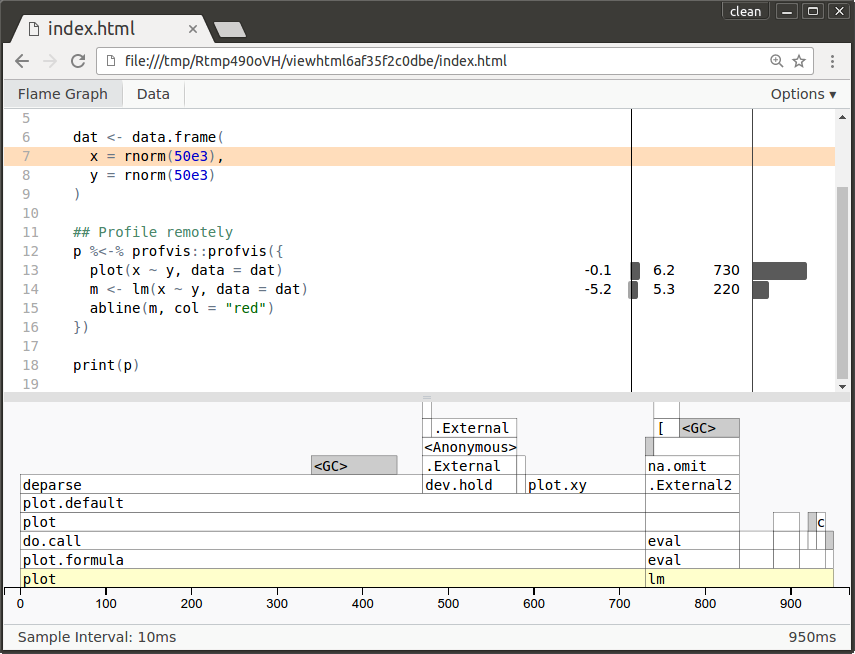

# A3.2 Profile code remotely - display locally

```r
> plan(cluster, workers = "remote.org")

> dat <- data.frame(
+   x = rnorm(50e3),
+   y = rnorm(50e3)
+ )

## Profile remotely
> p %<-% profvis::profvis({
+   plot(x ~ y, data = dat)
+   m <- lm(x ~ y, data = dat)
+   abline(m, col = "red")
+ })
```

```r
## Browse locally
> p
```

---
class: Large
count: false

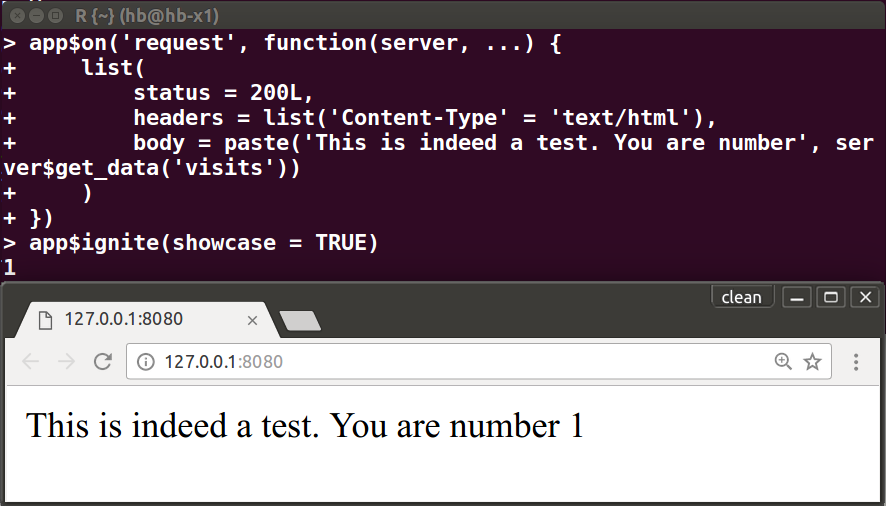

# A3.3 _fiery_ - flexible lightweight web server (Thomas Lin Pedersen) <img src="imgs/fiery-logo.png" alt="fiery logo" class="package-logo" style="margin-top: 2ex;">

> "... **framework for building web servers in R. ... from serving static
> content to full-blown dynamic web-apps**"

---
class: huge
count: false

# A3.4 "It kinda just works" (furrr = future + purrr)

```r
plan(multisession)
mtcars %>%
  split(.$cyl) %>%
  map(~ future(lm(mpg ~ wt, data = .x))) %>% values %>%
  map(summary) %>%
  map_dbl("r.squared")
##         4         6         8
## 0.5086326 0.4645102 0.4229655
```

<p class="footnote-small">
Comment: This approach not do load balancing.  I have a few ideas how support for this may be implemented in future framework, which would be beneficial here and elsewhere.
</p>

---
count: false

# A4. Future Work

---
class: huge
count: false

# A4.1 Standard resource types(?)

For any type of futures, the develop may wish to control:

* memory requirements, e.g. `future(..., memory = 8e9)`
* local machine only, e.g. `remote = FALSE`
* dependencies, e.g. `dependencies = c("R (>= 3.5.0)", "rio"))`
* file-system availability, e.g. `mounts = "/share/lab/files"`
* data locality, e.g. `vars = c("gene_db", "mtcars")`
* containers, e.g. `container = "docker://rocker/r-base"`
* generic resources, e.g. `tokens = c("a", "b")`
* ...?

<p class="footnote-small">
Risk for bloating the Future API:  Which need to be included?  Don't want to reinvent the HPC scheduler and Spark.
</p>
